Release notes
Update Geberit BIM plug-in October 2025
The Geberit BIM plug-in, version 2.11, is supported in the following Autodesk® Revit® versions:
• 2024
• 2025
• 2026
* Revit 2023 users should not update the Geberit BIM plug-in if they wish to continue using it
* Revit 2023 will no longer be supported after six months.
New in the catalogue module

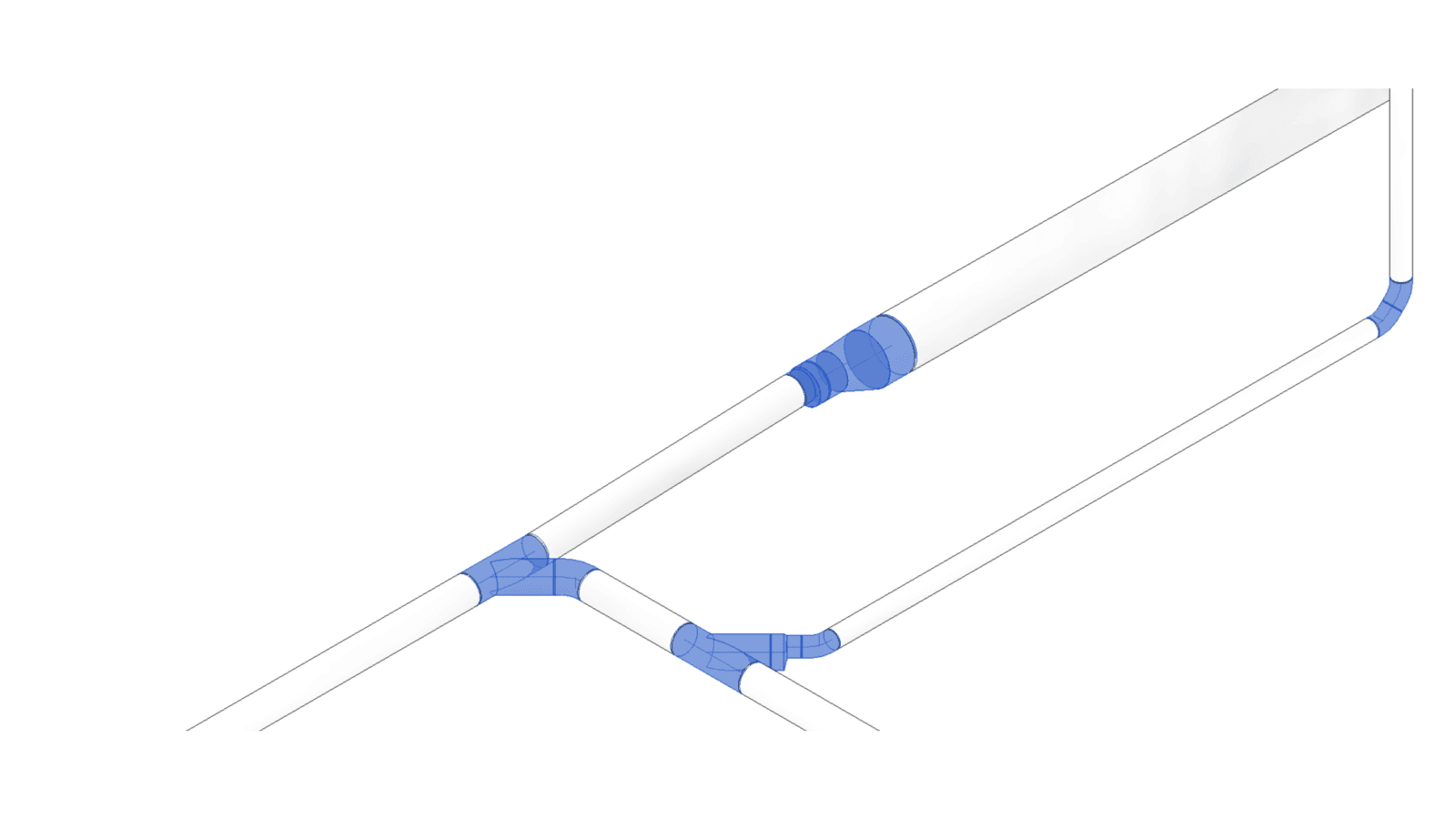

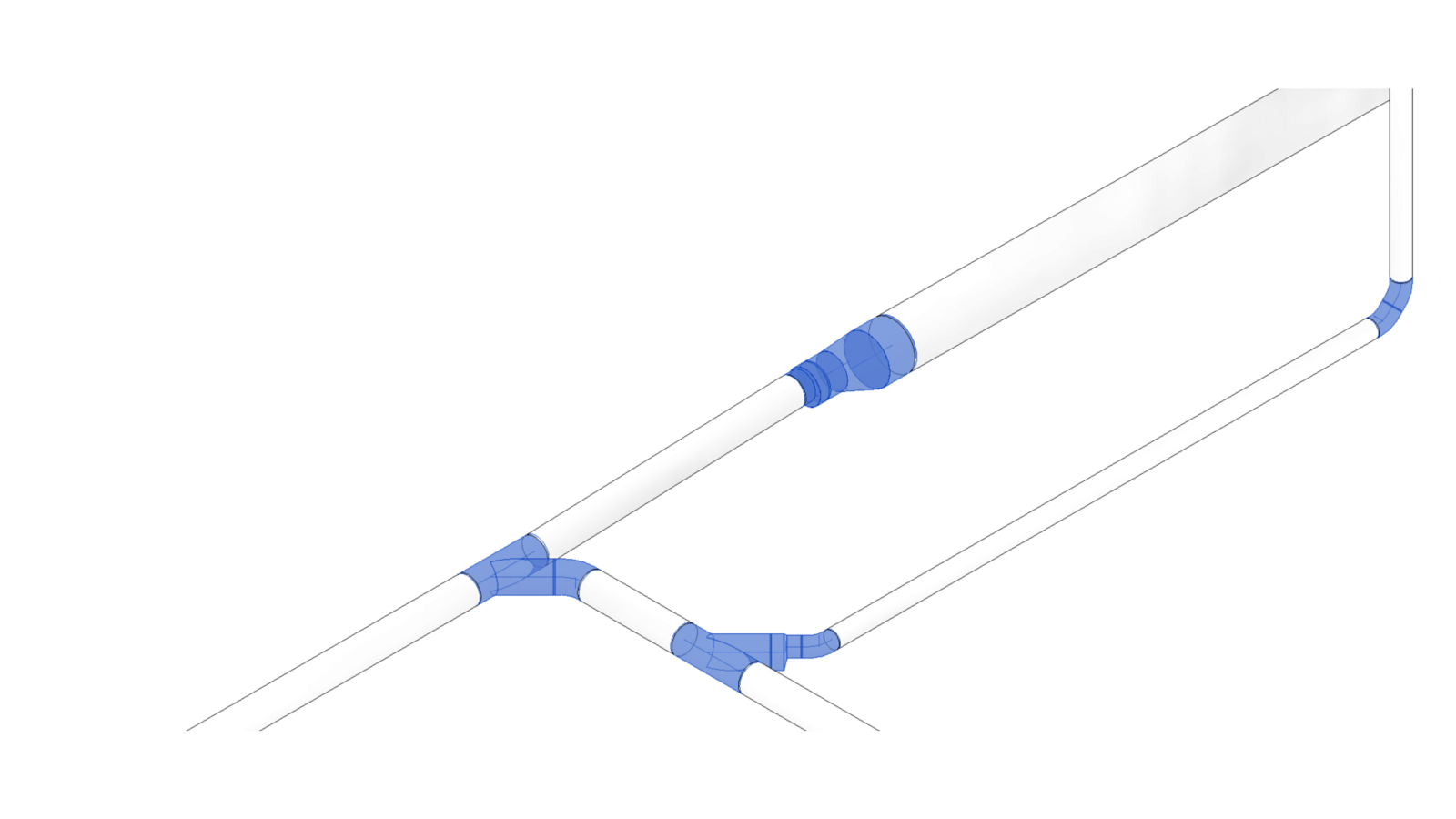

Smarter fittings with nested families
Standard fitting arrangements are now automatically generated through intelligent nested families. By integrating these elements into routing preferences, the system creates all required configurations without manual steps.
This will provide a faster workflow, fewer errors and smoother design process.

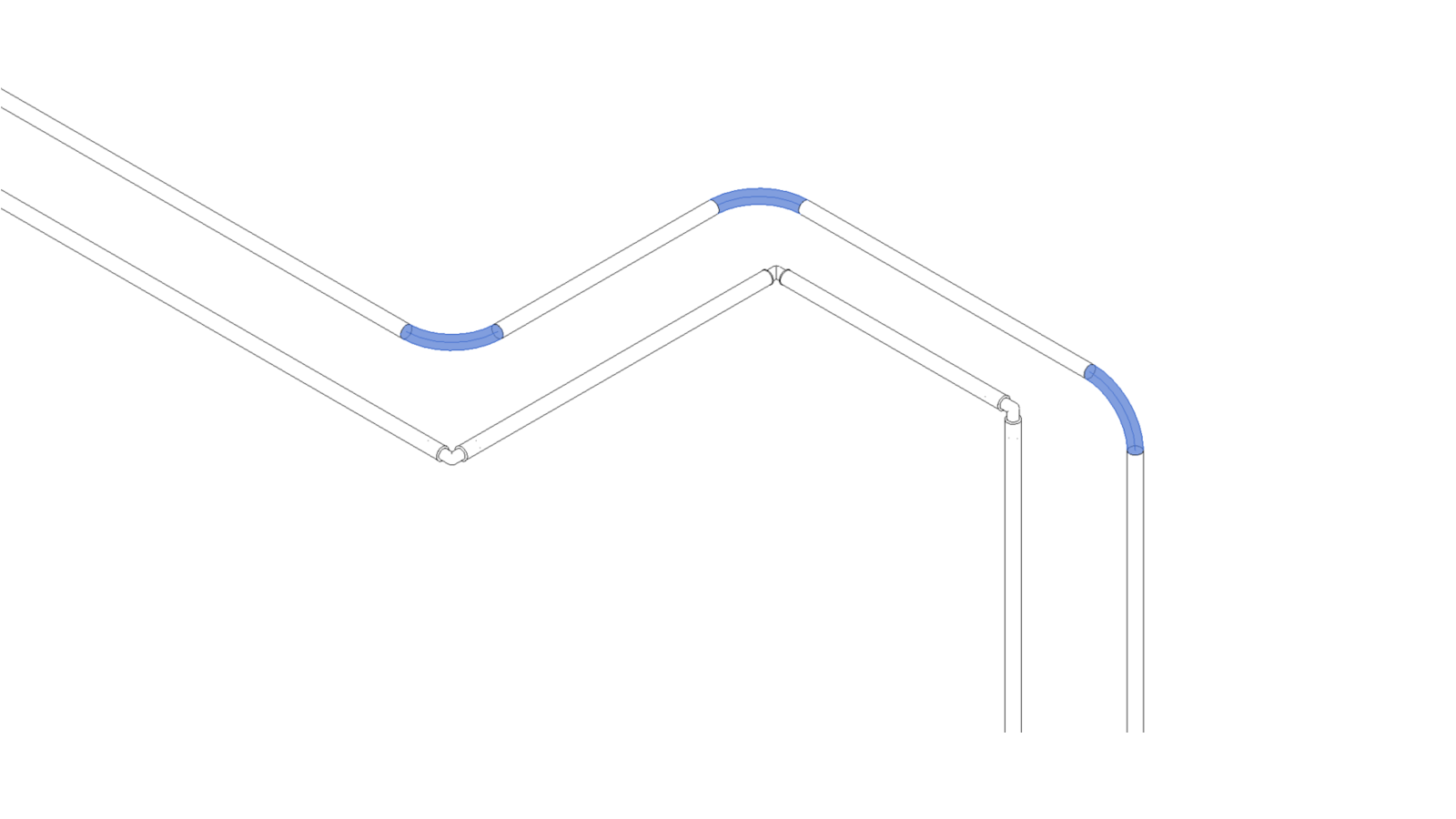

More flexibility with supply bends
Supply Systems now support bendable pipes that can be included in the material list.
This improvement reduces dependency on fittings, resulting in more efficient and cost effective planning.
News in Pluvia module

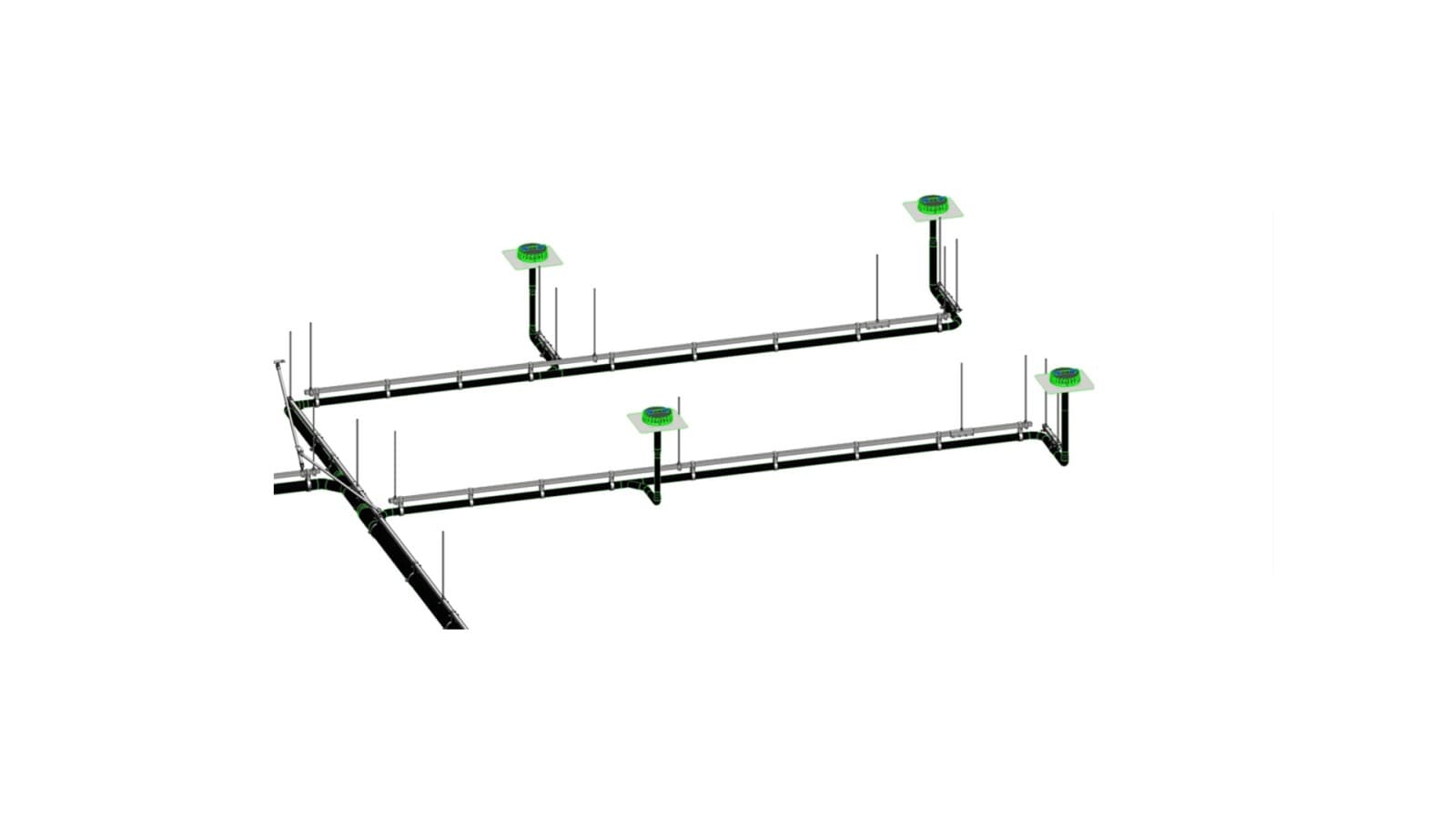

10 times faster planning of Geberit Pluvia fastening systems

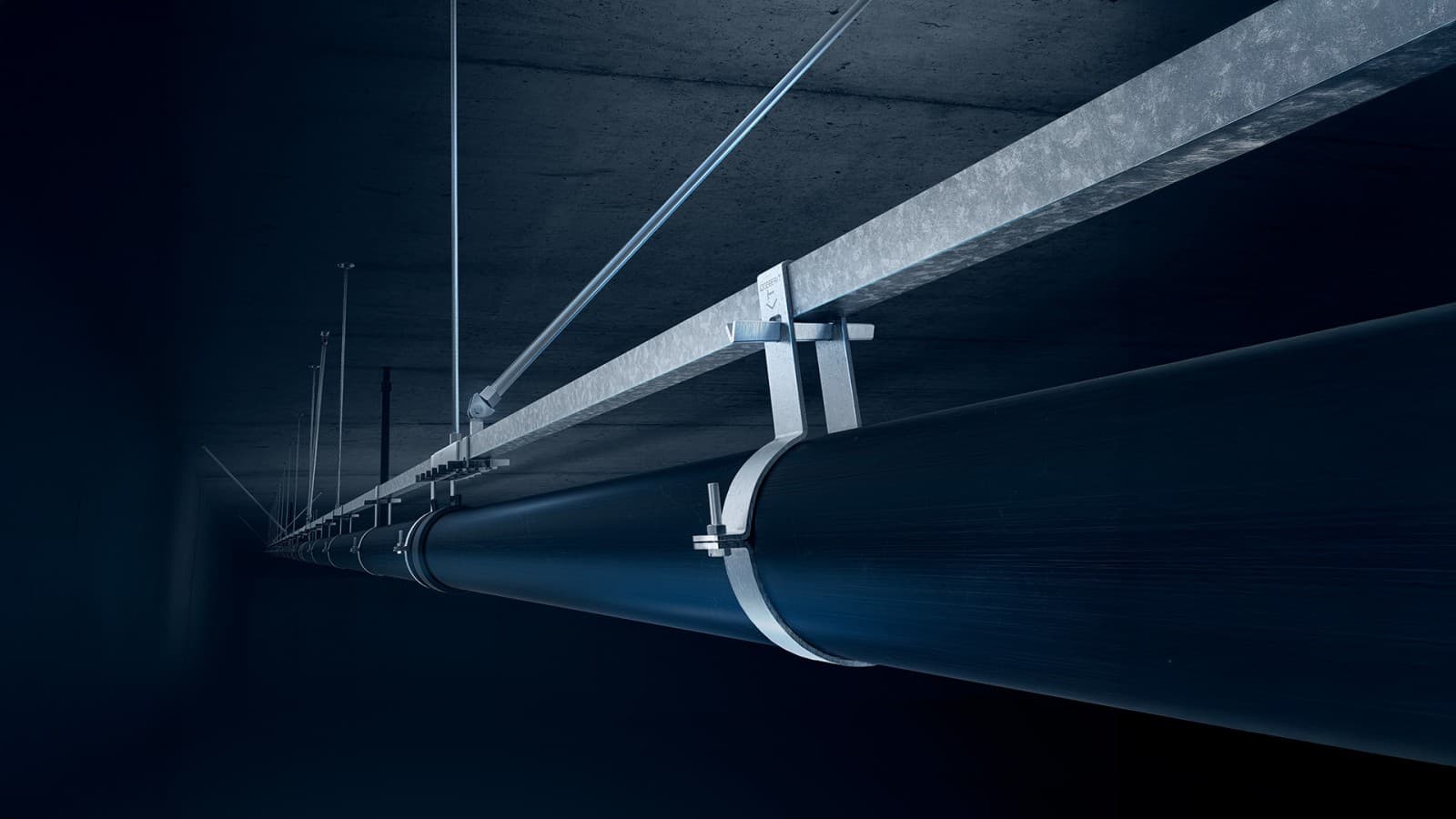

The new automatic planning for the Geberit Pluvia fastening drastically reduces the time needed to model a complete Geberit Pluvia system in Revit. This not only eliminates time-consuming manual calculations but also improves drawing accuracy. After successful calculation, fastening materials such as Rail Fastening and Direct Fastening are automatically applied.
Material list for specific pipe section
Users can now generate material lists for selected sections instead of the entire system. Ideal for renovation projects since you only focus on relevant sections.

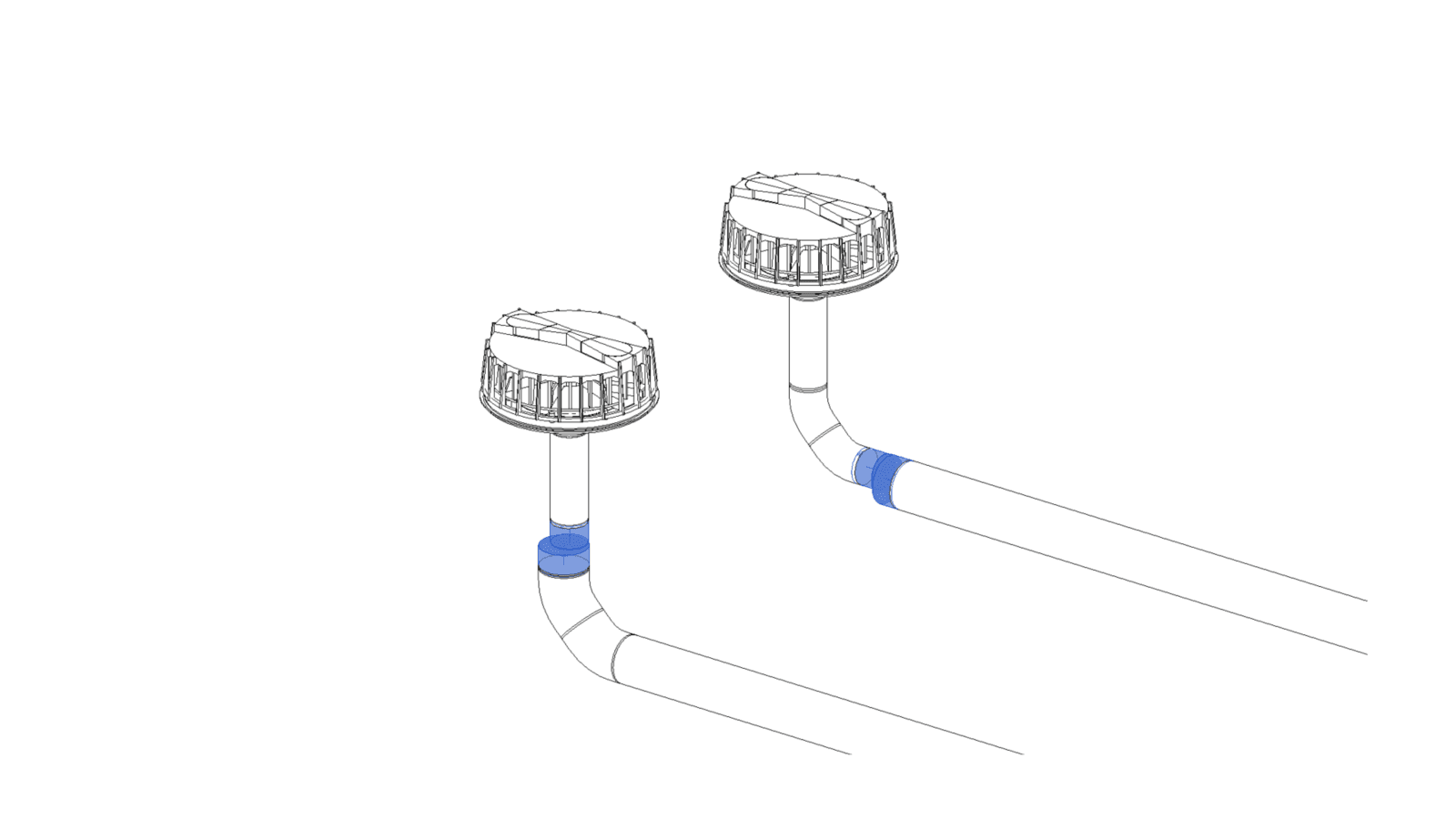

Flexible reduction placement
Higher accuracy by flexible placement of pipe reduction.
In projects where space is limited, the reduction fitting can now be positioned exactly where needed (on the vertical or horizontal pipe right after an outlet). This reduces manual adjustments to material lists and ensures higher project accuracy.

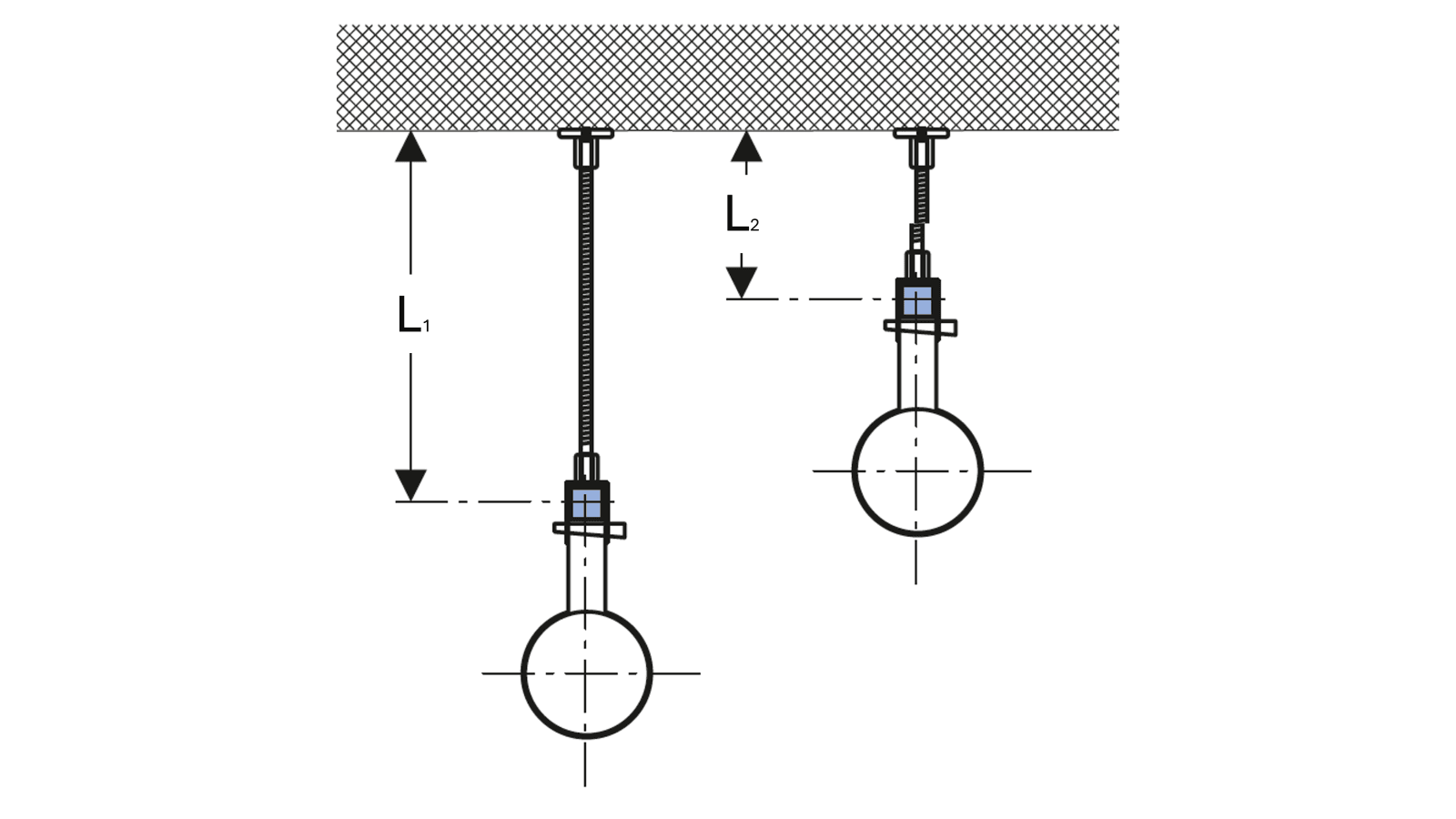

Length definition of threaded rods for individual pipes
By defining multiple structure distances at the pipe level, users can generate more accurate fastening lists. This optimizes threaded rod calculations and cutting lengths, resulting in more efficient material planning.
Information about older release notes
April 2025
New in the Catalogue module
- Geberit Silent-db20 SuperTube available
- The new Geberit Duofix installation system available
New in Pluvia module
- Calculation waiting time reduced when modifying dimensions
New in the Installation module
- Easier to select the installation elements with Geberit Duofix or Geberit GIS
October 2024
General
- User registration directly in the Geberit BIM plug-in
New in the Catalogue module
- Find your products faster in the “Favorite catalogue”
New in Pluvia module
- Added unions remain after regeneration
- Define non-Custom angle designs in enabled projects
New in the Installation module
- More control for labelling elements
April 2024
The new release of the Geberit BIM plug-in version 2.8 supports the following Autodesk Revit®-version: V2022; V2023 and V2024.
General
- More control when to run updates
New in the Catalogue module
- Working with Geberit GIS elements will be easier and provides new possibilities
- Working with Geberit Kombifix elements will be easier and provides new possibilities
New in the Assistance module
- New options for connection type with split pipe tool
New in the Pluvia module
- Custom angle planning for Geberit Pluvia pipe installation
- 3D Isometric support view generated automatically in the project browser
- When modeling the pipe installation for a Geberit Pluvia System with two options: “cut to fit” or the max cut length will be automatically added to the fitting
- Placement of multiple ground connections is now possible providing fast and flexible designs
